• Wide operating voltage range in a single unit, from AC/DC 24V~240V
• Customized CMOS  IC for low power consumption, high operation stability and extreme timing accuracy

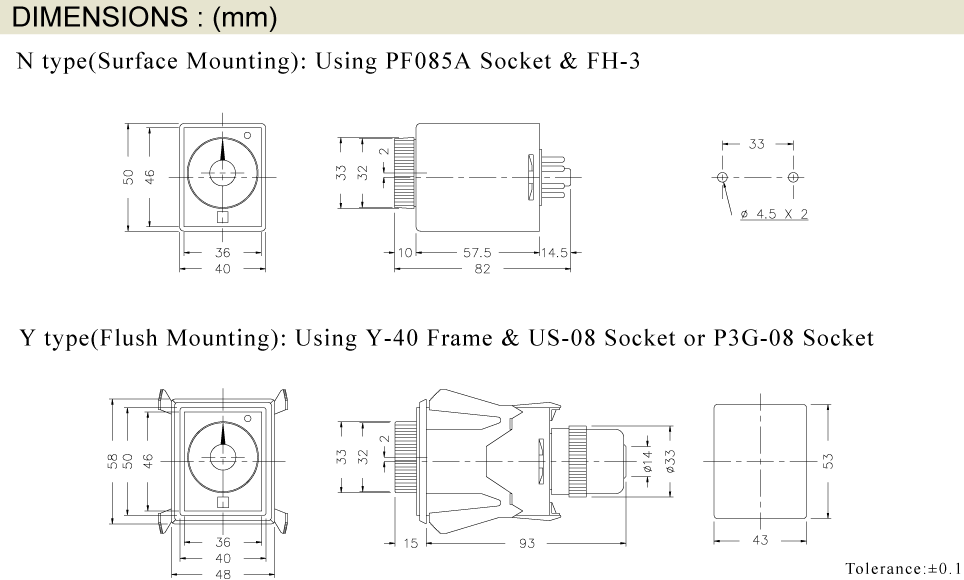

• Flush mount with Type Y-40 adapter and surface mount without adapter
• 5 (RA, RB, RC, RD, RE) timing series available
• Each timing series has 4 time ranges, selectable via DIP switch

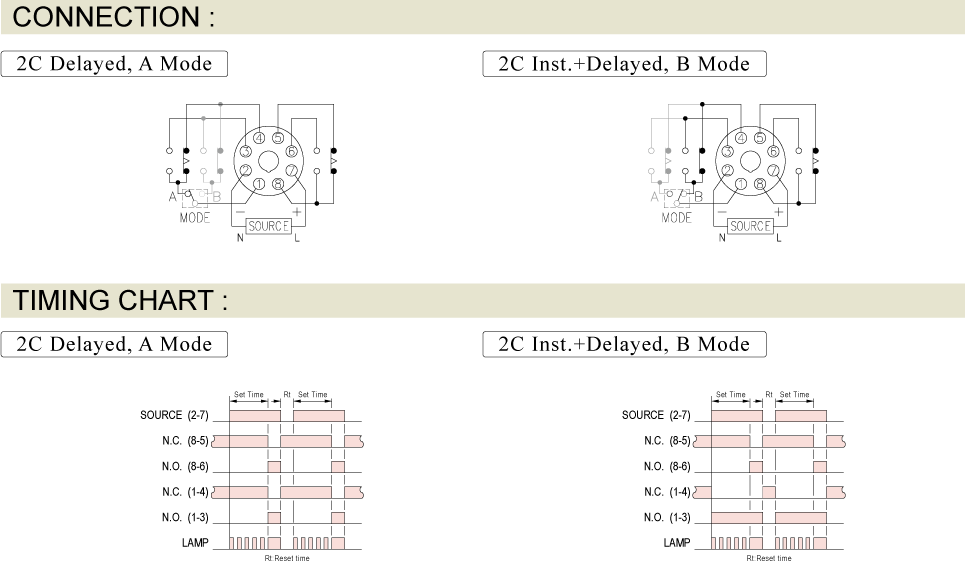

• A/B Mode selectable with a slide switch.
  A Mode for 2C Delayed output contacts.
  B Mode for 2C Inst.+Delayed output contacts.
• UL, C-UL recognized and CE certified
